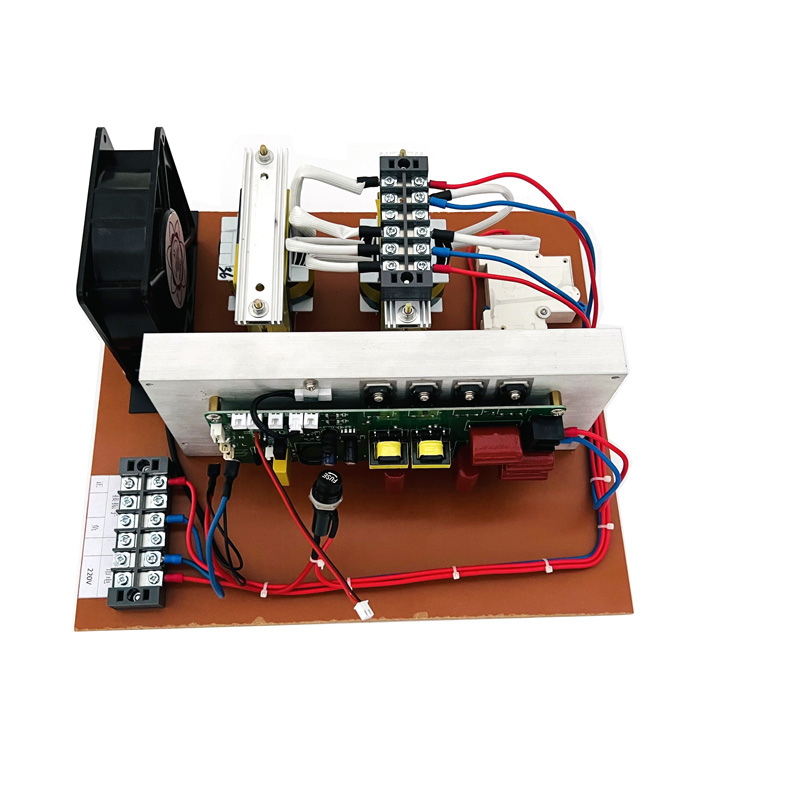

28KHZ Digital Ultrasonic PCB Circuit Board Power Supply For Ultrasonic Cleaner Transducer
Category：Company news
Layout structure of ultrasonic cleaning circuit board, including power supply, impedance adjustment circuit, transducer circuit, control circuit, data acquisition circuit, and interface circuit; The control circuits are respectively connected to a power supply, an impedance adjustment circuit, a transducer circuit, and a data acquisition circuit. The power integrated circuit on this circuit board is connected to the ARM processor S3C2440 connected to this power integrated circuit.
Model | Power | Frequency | Voltage |
PLS-WDLB300W | 300W | 17khz,20khz,25khz,28khz,33khz,40khz,50khz,54khz, 68khz,80khz,100khz,120khz,135khz,165khz,200khz | 110V/120V/220V/240V |
PLS-WDLB600W | 600W | 17khz,20khz,25khz,28khz,33khz,40khz,50khz,54khz, 68khz,80khz,100khz,120khz,135khz | 110V/120V/220V/240V |
PLS-WDLB900W | 900W | 17khz,20khz,25khz,28khz,33khz,40khz | 110V/120V/220V/240V |
PLS-WDLB1000W | 1000W | 17khz,20khz,25khz,28khz,33khz,40khz | 110V/120V/220V/240V |
PLS-WDLB1200W | 1200W | 17khz,20khz,25khz,28khz,33khz,40khz | 110V/120V/220V/240V |
PLS-WDLB1500W | 1500 | 17khz,20khz,25khz,28khz,33khz,40khz | 110V/120V/220V/240V |
PLS-WDLB1800W | 1800 | 17khz,20khz,25khz,28khz,33khz,40khz | 220V/240V |
PLS-WDLB2000W | 2000 | 17khz,20khz,25khz,28khz,33khz,40khz | 220V/240V |
PLS-WDLB2400W | 2400 | 17khz,20khz,25khz,28khz,33khz,40khz | 220V/240V |
PLS-WDLB3000W | 3000 | 17khz,20khz,25khz,28khz,33khz,40khz | 220V/240V |
28KHZ Digital Ultrasonic PCB Circuit Board Power Supply For Ultrasonic Cleaner Transducer
