The ultrasonic pulse generator power supply is a high-power pulse ultrasonic generator, in which a microcontroller generates a control signal and drives the entire bridge through a bridge drive circuit to achieve the purpose of controlling capacitor charging and discharging, thereby controlling the pulse excitation circuit to output the required pulse width of the double pulse signal. Finally, the pulse amplitude is greatly increased through a double pulse transformer

The Ultrasonic cleaning is mainly composed of three parts: the power supply of the ultrasonic pulse generator, the ultrasonic transducer and the cleaning tank. The function of the ultrasonic generator is to convert the power frequency AC signal into the ultrasonic frequency electrical signal, which is used to excite the subsequent transducer. Taking the ultrasonic generator as the research object, it is necessary to conduct research on the main circuit system parameters and frequency automatic tracking system of the ultrasonic generator, in order to improve the accuracy and performance reliability of the system frequency automatic tracking.

The ultrasonic pulse generator power supply mainly solves the problem of sharing a single oscillation source for ultra high power ultrasonic generators, which can be adjusted at any frequency point within a wide frequency range. The specific technical solution of the present invention is that the ultra high power ultrasonic generator is composed of a power circuit, a clock circuit, a signal generator circuit, a pre drive circuit, a microprocessor power adjustment circuit, a power amplification and matching circuit, and a load circuit, The signal generator divides the clock signal into multiple stages and generates a control signal in the frequency range of 16KHz-2MHz based on the selected frequency point. The pre drive circuit converts the control signal into 1-100 drive signals as needed. The pre drive signal is amplified and matched to obtain a high voltage output to provide the load circuit. Through the operation of the microprocessor power control circuit, the output power is adjusted and controlled

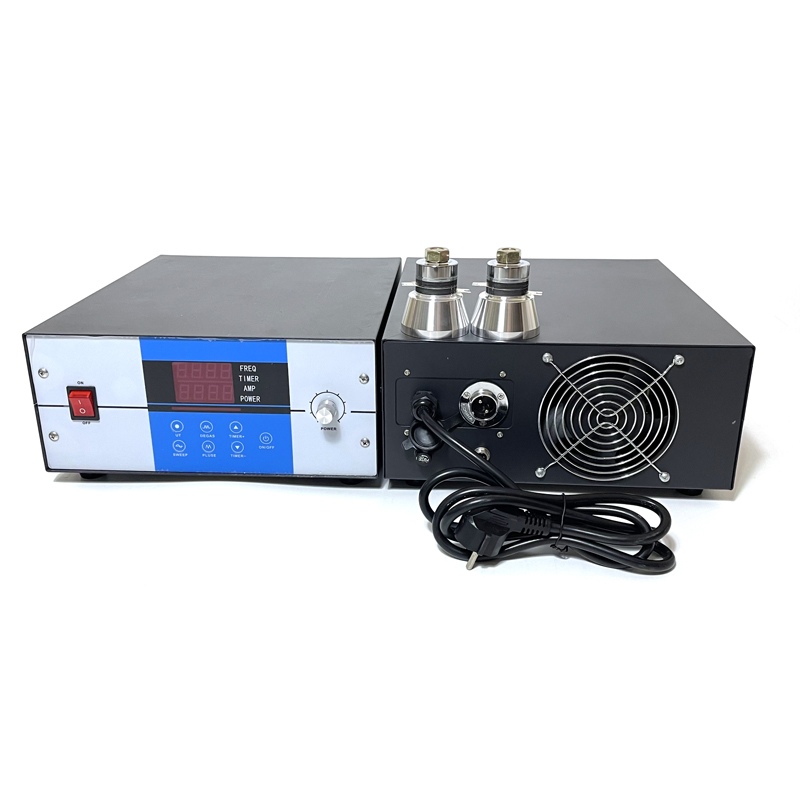

Industrial Ultrasonic Cleaner Generator Ultrasonic Driver Cleaning Generator 40Khz Ultrasonic Transducer Generator
