The frequency and power adjustable ultrasonic generator power supply is an important component of high-power ultrasonic systems. The function of an ultrasonic generator is to convert the mains power into a high-frequency AC signal that matches the transducer, driving the transducer to work. However, the existing high-power regulation requires external equipment (power machine) to regulate it. Later, electronic circuits can be modified and electronic components can be optimized to achieve the goal of no need for external equipment to regulate high-power machines. At the same time, the existing digital control cannot be wirelessly controlled, In the later stage, it is necessary to add wireless control function by modifying the circuit; The current maximum power of a single machine is 3000W, and power exceeding 3000W requires multiple machines to be connected.

The frequency and power adjustable ultrasonic generator power supply can be adjusted according to different frequencies and powers of ultrasonic industrial machines to drive all industrial ultrasonic machines, solving the technical problems of different frequencies and powers of ultrasonic. The control panel can display and control the adjustment function, with a wide range of sound frequency and power adjustment, stable and reliable, and wide application range.

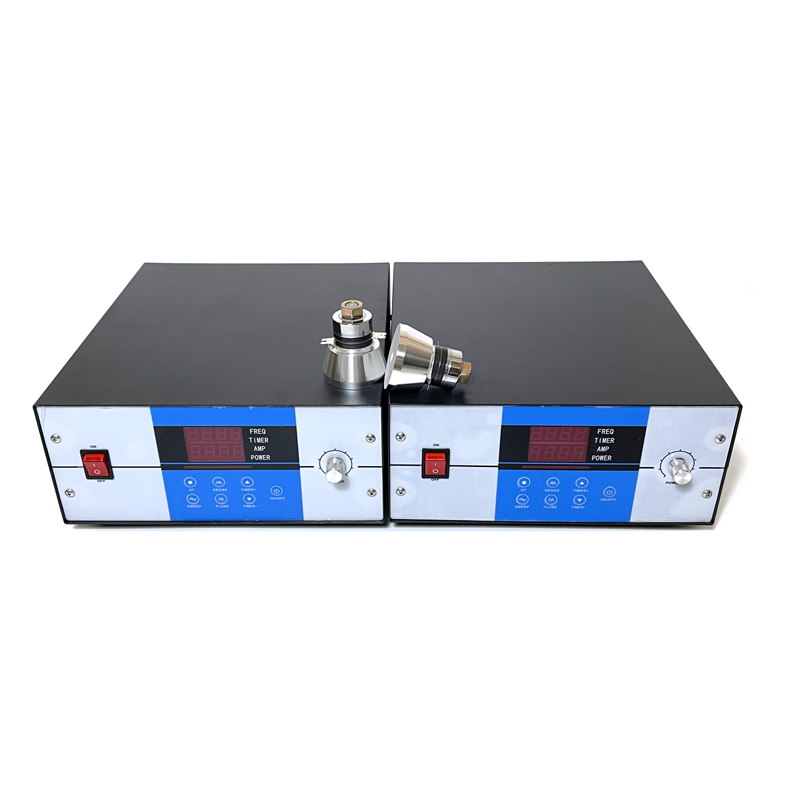

Power supply of adjustable frequency and power ultrasonic generator An adjustable ultrasonic generator includes a generator bottom shell, a control panel installed on the generator bottom shell, a power regulating Potentiometer and a power switch. One side of the generator bottom shell is provided with a mounting hole, in which a fan I is fixedly connected through bolts. A transformer board and a control board are installed in the generator bottom shell, and the control board is respectively connected with the control panel The power regulating Potentiometer is electrically connected to the power switch. A transverse plate is installed in the bottom shell of the generator. Fan 2 is fixedly connected to one side of the transverse plate through bolts. A driving plate is fixedly connected to the other side of the transverse plate through bolts. The generator shell is fixedly connected above the bottom shell of the generator through bolts. A plurality of heat dissipation holes are set on both sides of the generator shell. High frequency output terminals The remote terminal and power line of the PLC are connected to the power switch through the generator casing at the other end, and the drive board is electrically connected to the power switch, fan 1, transformer board, control board, fan 2, high-frequency output terminal, and the remote terminal of the PLC.
