Features of the product:

Instantaneous value of cleaning power of ultrasonic cleaning machine can be measured at any time

Unit: W/cm2

It can also measure the average value of the cleaning power of the ultrasonic cleaning machine

When measuring the average value, the number of samples is 0-40,

It is simple and convenient to operate with four operation keys

Small portable design, body weight is about 620g

The measured value of sound pressure can be directly displayed on the LCD screen

It can display the upper and lower limits of the measured value, and indicate whether there is data beyond the limited range, so as to judge whether the cleaning power of the ultrasonic cleaner is normal.

Technical specifications of acoustic pressure gauge:

Applicable frequency range: 5K-100KHz

Measured sound pressure range: 0-200W/cm2

Determination accuracy: 0.01W/cm2

Response time: 6ms

Test rod size: 9.2mm in diameter and 50mm-60mm in length

Test rod material: stainless steel

Connecting line length: 1.5m

Power supply: No. 7 rechargeable battery (2 batteries)

Battery life: 150000 hours

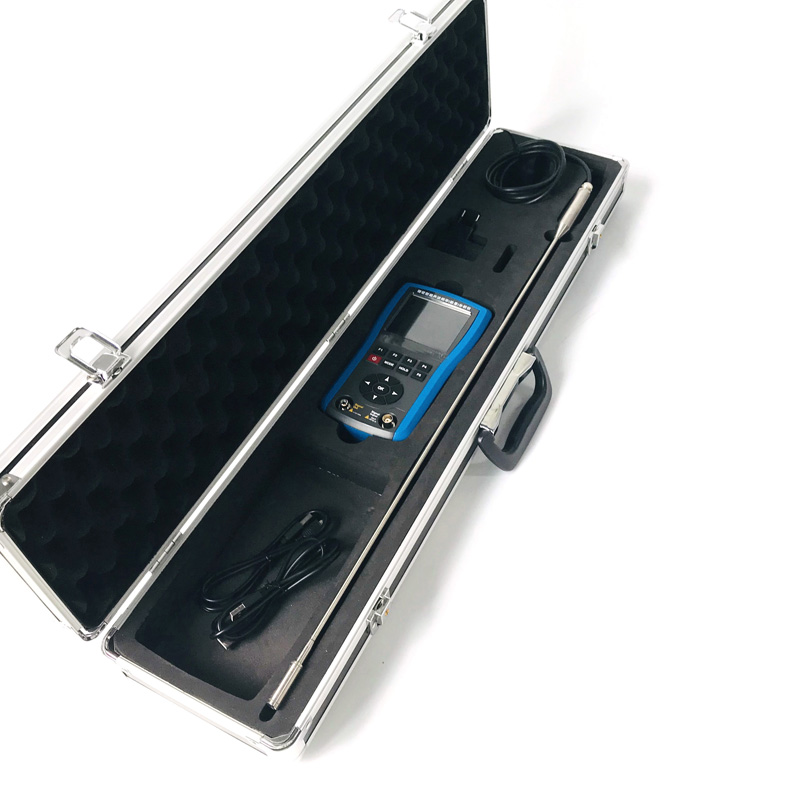

Accessories: 2 No. 7 rechargeable batteries, battery charger; Carrying case, operating instructions

Ultrasonic Sound Pressure Meter Ultrasonic Power Density Ultrasound Intensity Measuring Instrument
