Process flow of multi-tank ultrasonic cleaning equipment:

One tank heated soaking → two tanks ultrasonic rough washing → three tanks ultrasonic fine washing → four tanks heated rinsing → five tanks heated rinsing

Structural composition of cleaning machine

The system is mainly composed of heating tank, ultrasonic cleaning tank, ultrasonic generator, control rack and generator electric box.

Functions and requirements of each slot

The spare part is designed in the form of tank connection. The external dimension of the equipment is about 3110 * 600 * 780 mm. The bottom of the equipment is composed of

The thickened 50 * 50 stainless steel square tube is welded, and 6 3-inch solid casters are installed at the bottom. The heating temperature control part is directly installed in the water tank

The outer wall is convenient for operation. The size of the control rack is about 1400mm (height) * 450 * 450 wide, and four ultrasonic generators are placed. The connecting line between the generator and the tank of the control frame is 2 meters. Total power of the whole machine: 18KW, voltage: 380V.

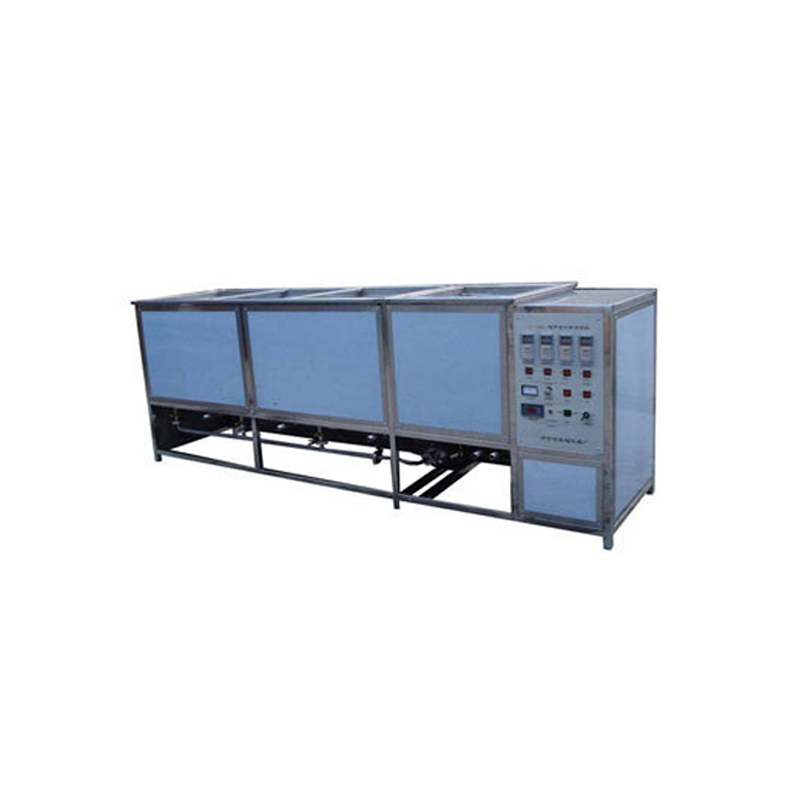

Customized Industrial Ultrasonic Cleaner 1200W Multi Tank for Cylinder Head Car Engine Heat Water Digital Drying Spray
