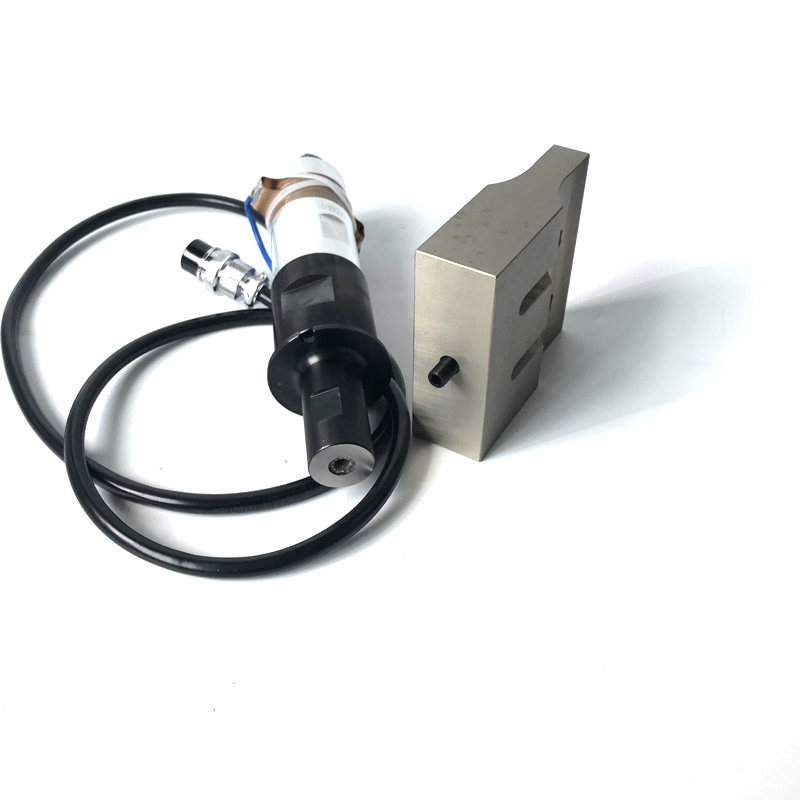

1800W 15KHZ/20KHZ Industrial Ultrasonic Welder Converter Horn For Ultrasonic Plastic Welder
Category：Company news
Ultrasonic welding transducer is actually a piezoelectric ceramic with the same frequency as its resonant frequency, which uses the piezoelectric effect of materials to convert electrical energy into mechanical vibration. Generally, the ultrasonic wave is generated by the ultrasonic generator, which is converted into mechanical vibration by the ultrasonic transducer, and then the ultrasonic wave can be generated by the ultrasonic export device and the ultrasonic receiving device.
| Type | Full-length(mm) | Joint Bolt(mm) | Frequency(KHz) | Resonance Impedance(Ω) | Capacity(pF) | Input Power (W) |
| PLS-HJHNQ152600 | 153 | M20×1.5 | 15 | 15 | 13000 | 2600 |
| PLS-HJHNQ152000 | 167 | M20×1.5 | 15 | 10 | 9500 | 2000 |
| PLS-HJHNQ202000 | 128 | M18×1 | 20 | 10 | 11000 | 2000 |
| PLS-HJHNQ30500 | 77 | M10×1.5 | 30 | 5 | 5500 | 500 |
| PLS-HJHNQ28200 | 92.1 | M10×1 | 28 | 20 | 3000 | 200 |
| PLS-HJHNQ28100 | 91 | M8×1 | 28 | 25 | 2200 | 100 |
| PLS-HJHNQ28250 | 94 | 1/2-20 UNF | 28 | 20 | 4000 | 250 |
| PLS-HJHNQ202000 | 128 | 1/2-20 UNF | 20 | 10 | 20000 | 2000 |
| PLS-HJHNQ201500 | 124 | 1/2-20 UNF | 20 | 10 | 16000 | 1500 |
| PLS-HJHNQ38100 | 66 | M8×1.25 | 38 | 40 | 1200 | 100 |
| PLS-HJHNQ38200 | 65 | M8×1 | 38 | 14 | 3300 | 200 |
1800W 15KHZ/20KHZ Industrial Ultrasonic Welder Converter Horn For Ultrasonic Plastic Welder
