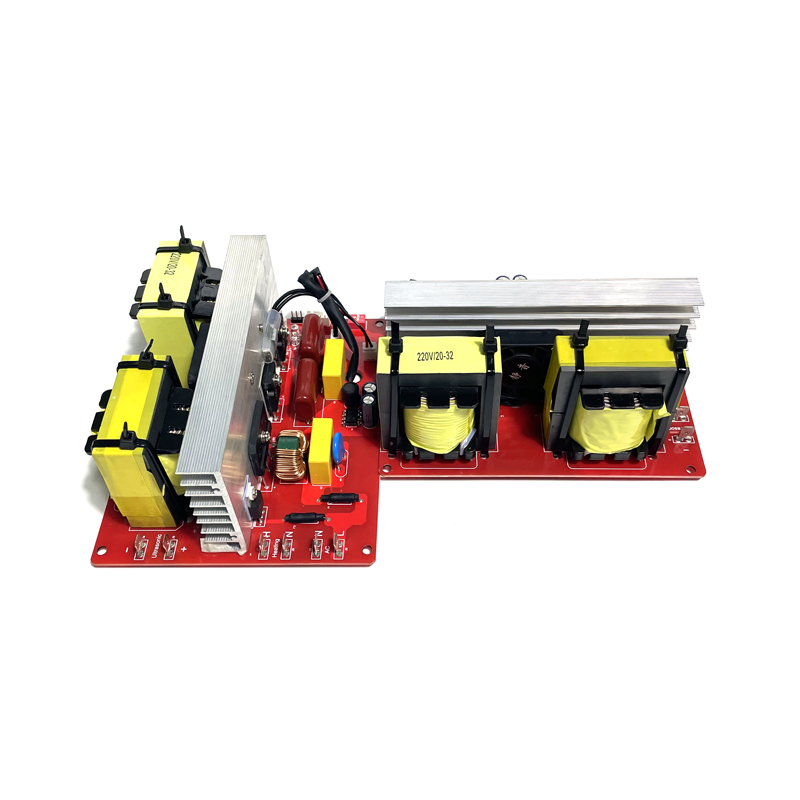

20khz Industry Piezoelectric Ultrasonic Generator Kit PCB Assembly
Category：Company news
Low power ultrasonic circuit board refers to the ultrasonic power supply that drives less than 10 ultrasonic transducers. Since there is no shell and display board, all of them are small in size and low in cost. They can be started when connected to the ultrasonic transducer. All of them have been welcomed and recognized by customers in domestic and foreign markets. The working frequency of the small power ultrasonic circuit is automatically tracked, so that the output matching is better, the power is more powerful, and the efficiency is higher.
Type | Frequency | Power | Dimension(mm) | Transducer numbers |
PLS-DLB60T | 25khz,28khz,33khz,40khz | 60W | 132×85×45mm | 1 piece |
PLS-DLB100T | 25khz,28khz,33khz,40khz | 100W | 132×85×45mm | 1-2 pieces |
PLS-DLB120T | 25khz,28khz,33khz,40khz | 120W | 132×85×45mm | 1-2 pieces |
PLS-DLB150T | 25khz,28khz,33khz,40khz | 150W | 132×85×45mm | 1-3 pieces |
PLS-DLB200T | 25khz,28khz,33khz,40khz,80khz,100khz,135khz | 200W | 180×130×60mm | 4 pieces |
PLS-DLB300T | 25khz,28khz,33khz,40khz | 300W | 180×130×60mm | 6 pieces |
PLS-DLB400T | 25khz,28khz,33khz,40khz | 400W | 180×130×60mm | 8 pieces |
PLS-DLB500T | 25khz,28khz,33khz,40khz | 500W | 180×130×60mm | 10 pieces |
PLS-DLB600T | 25khz,28khz,33khz,40khz | 600W | 180×130×60mm | 12 pieces |
Ultrasonic PCB generator could to 2400W,welcome send the enquire | ||||
200W-600W Ultrasonic PCB frequency adjustable,display board is optional | ||||
20khz Industry Piezoelectric Ultrasonic Generator Kit PCB Assembly
