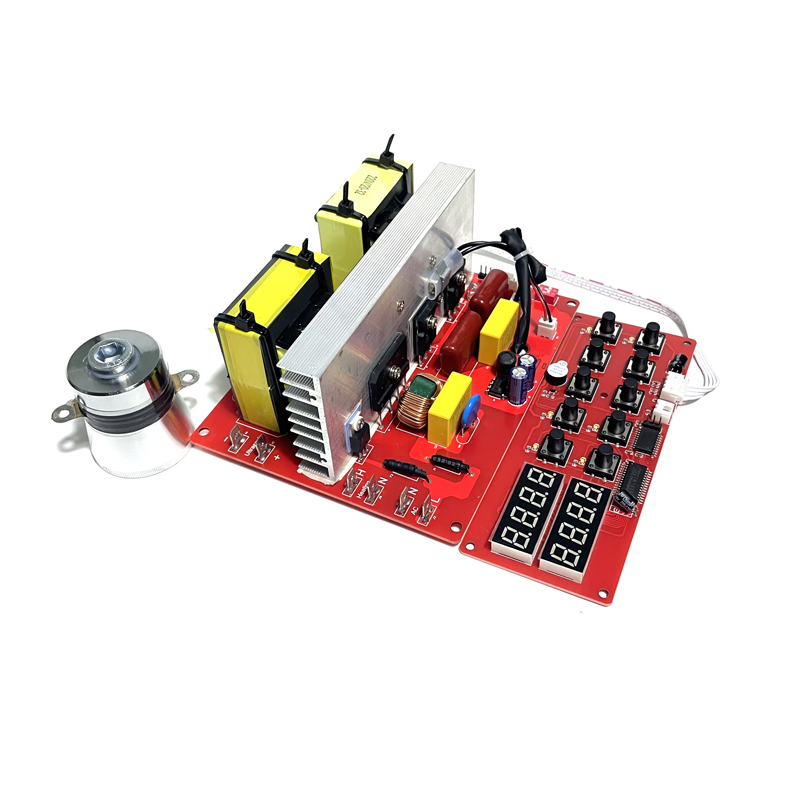

240W Single Frequency Ultrasonic PCB Generator And Vibration Cleaning Transducer

Category:Company news

240W Single Frequency Ultrasonic PCB Generator And Vibration Cleaning Transducer

Ultrasonic generator is a conversion device that converts electric energy into ultrasonic energy and provides energy to ultrasonic transducer, also known as ultrasonic power supply. The QYP series ultrasonic generator produced by our company is based on the technology of well-known experts and professors in China, has absorbed the advanced experience at home and abroad, and is assembled and developed using the original imported high-power devices.


Ultrasonic generator is widely used in ultrasonic cleaning, welding, drilling, polishing, homogenization, descaling and other fields. Its products sell well all over the country and are highly praised by users.


Product features:


IGBT - Ⅳ inverter technology (IGBT inverter technology: the most advanced and popular power technology in the world today, with the advantages of small size, light weight, high conversion efficiency, low energy consumption, good quality, long life, etc.) is used for power output, with large output power and excellent effect.


The ultrasonic power is adjustable, the adjustable range is 0-maximum, and the power current meter indicates.


Equipped with remote control interface, it is more convenient for users to use.


The power supply has reasonable structure design, easy ventilation and heat dissipation, overcurrent, overvoltage and ove

Type

Frequency

Power

Dimension(mm)

Transducer numbers

PLS-DLB60T

25khz,28khz,33khz,40khz

60W

132×85×45mm

1 piece

PLS-DLB100T

25khz,28khz,33khz,40khz

100W

132×85×45mm

1-2 pieces

PLS-DLB120T

25khz,28khz,33khz,40khz

120W

132×85×45mm

1-2 pieces

PLS-DLB150T

25khz,28khz,33khz,40khz

150W

132×85×45mm

1-3 pieces

PLS-DLB200T

25khz,28khz,33khz,40khz,80khz,100khz,135khz

200W

180×130×60mm

4 pieces

PLS-DLB300T

25khz,28khz,33khz,40khz

300W

180×130×60mm

6 pieces

PLS-DLB400T

25khz,28khz,33khz,40khz

400W

180×130×60mm

8 pieces

PLS-DLB500T

25khz,28khz,33khz,40khz

500W

180×130×60mm

10 pieces

PLS-DLB600T

25khz,28khz,33khz,40khz

600W

180×130×60mm

12 pieces

Ultrasonic PCB generator could to 2400W,welcome send the enquire

200W-600W Ultrasonic PCB frequency adjustable,display board is optional
