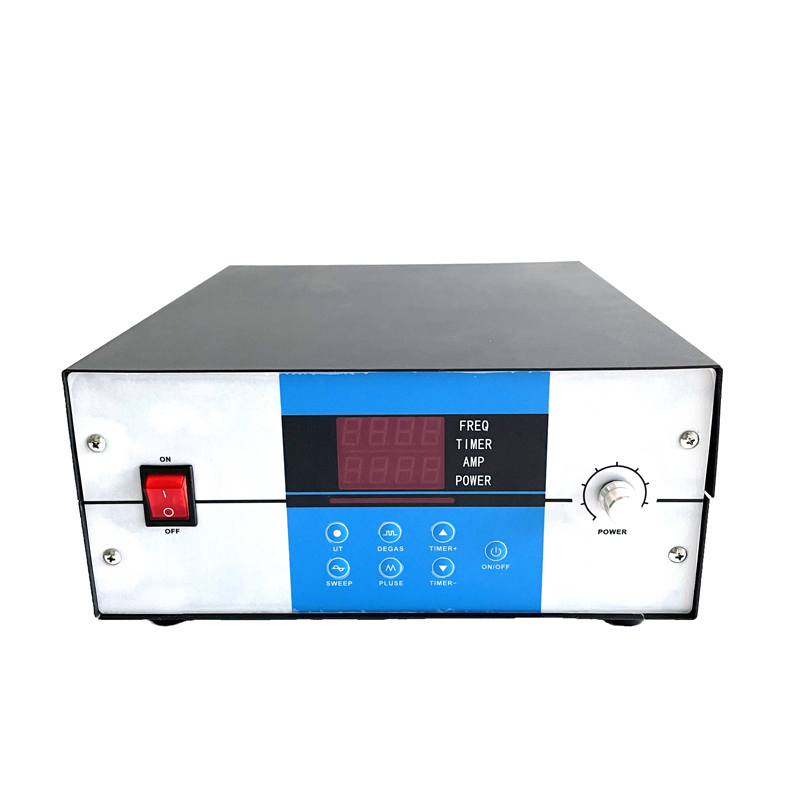

17khz -28khz Sweep frequency Piezoelectric Ultrasonic Generator For Washing Laboratory Dental Dishwasher
Category：Company news
In industrial production, even if the frequency tracking of the ultrasonic transducer is good, the change of AC voltage supplied by the ultrasonic generator and the transient change of ultrasonic from no-load to load from tens of watts to thousands of watts within a few milliseconds make the amplitude and power of the ultrasonic transducer change accordingly, and the transducer can not reach the working state, which makes the products processed by ultrasonic are inconsistent. There are common problems with ultrasonic equipment. In order to adapt to the industrial production process, the ultrasonic frequency electric energy transmitted by the generator to the transducer will not be changed by the load power and the input voltage, and the generator will automatically adjust the amplitude within 1 millisecond, as well as the constant amplitude function. The ultrasonic generator with perfect amplitude signal has a feedback link, which mainly provides the following two feedback signals: amplitude signal feedback and frequency tracking feedback. Ultrasonic generator feedback signal.
Type | Power(W) | Frequency (KHz) | Transducer numbers | Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE | ||||
PLS-QXDY-300 | 300W | 17khz,20khz,25khz,28khz,33khz,40khz | 3-6 | 300x360x150 |
PLS-QXDY-600 | 600W | 17khz,20khz,25khz,28khz,33khz,40khz | 6-12 | 300x360x150 |
PLS-QXDY-900 | 900W | 17khz,20khz,25khz,28khz,33khz,40khz | 9-18 | 300x360x150 |
PLS-QXDY-1000 | 1000W | 17khz,20khz,25khz,28khz,33khz,40khz | 10-20 | 300x360x150 |
PLS-QXDY-1200 | 1200W | 17khz,20khz,25khz,28khz,33khz,40khz | 12-24 | 300x360x150 |
PLS-QXDY-1500 | 1500W | 17khz,20khz,25khz,28khz,33khz,40khz | 15-30 | 300x360x150 |
PLS-QXDY-1800 | 1800W | 17khz,20khz,25khz,28khz,33khz,40khz | 18-36 | 300x360x150 |
PLS-QXDY-2000 | 2000W | 17khz,20khz,25khz,28khz,33khz,40khz | 20-40 | 300x360x150 |
PLS-QXDY-2400 | 2400W | 17khz,20khz,25khz,28khz,33khz,40khz | 24-48 | 300x360x150 |
PLS-QXDY-3000 | 3000W | 17khz,20khz,25khz,28khz,33khz,40khz | 50-60 | 300x360x150 |
High Frequency | 300W-1200W | 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ | ||
High Frequency | 100W-300W | 175-200KHZ | ||
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request | ||||
17khz -28khz Sweep frequency Piezoelectric Ultrasonic Generator For Washing Laboratory Dental Dishwasher
