2000W 17khz-40khz Ultrasonic Cleaner Generator Power Supply

Category：Company news

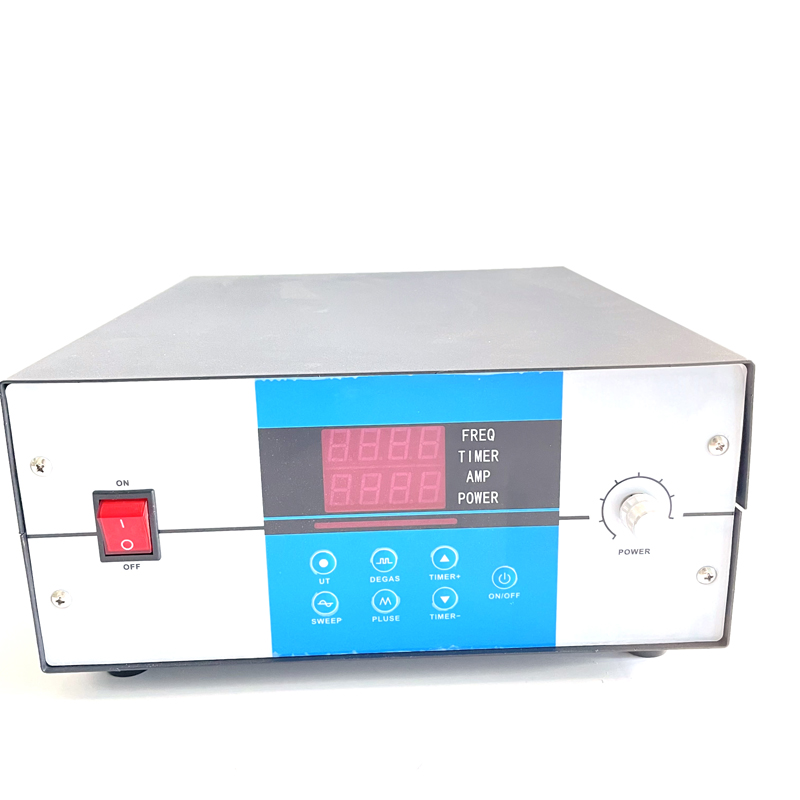

2000W 17khz-40khz Ultrasonic Cleaner Generator Power Supply

The company's ultrasonic power supply technology has the advantages of small volume, light weight, high conversion efficiency, energy consumption reduction, good quality and long service life. At present, the power of IGBT inverter ultrasonic cleaning machine can reach 3.5kw, which is the leading level in China, and the main components are imported.) Or power VMOS tube, with high output power and excellent effect;

The ultrasonic power is adjustable, the adjustable range is 0-, and the adaptability is wide. The ultrasonic power can be displayed by current meter or digital display according to the needs of users.

Using other excitation circuit and equipped with international advanced automatic frequency sweeping circuit, the performance is more stable.

2000W 17khz-40khz Ultrasonic Cleaner Generator Power Supply

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PLS-QXDY-300	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PLS-QXDY-600	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PLS-QXDY-900	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PLS-QXDY-1000	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PLS-QXDY-1200	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PLS-QXDY-1500	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PLS-QXDY-1800	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PLS-QXDY-2000	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PLS-QXDY-2400	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PLS-QXDY-3000	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request

2000W 17khz-40khz Ultrasonic Cleaner Generator Power Supply
