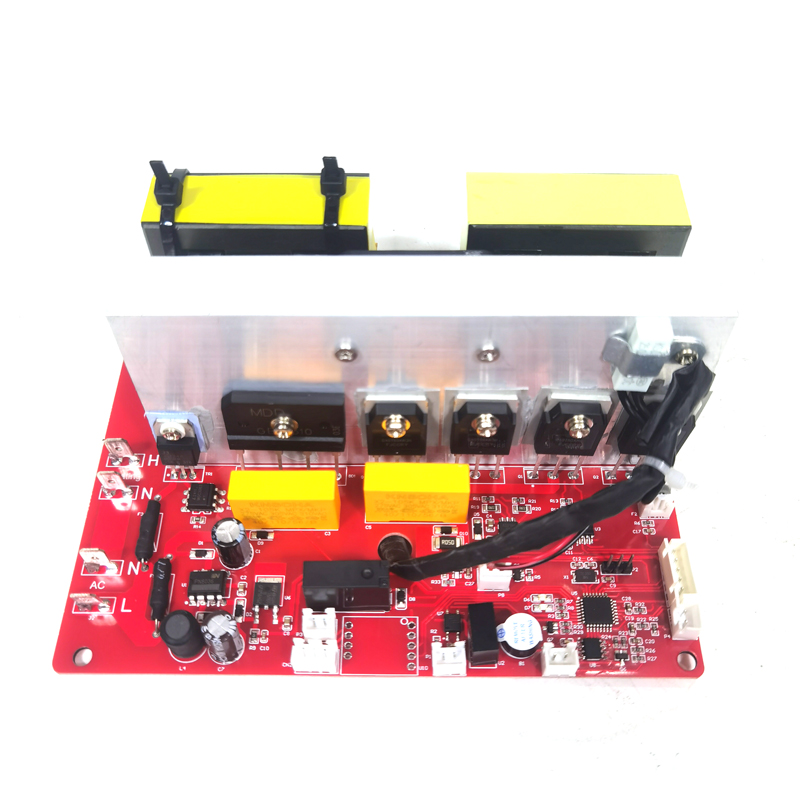

Power Adjustable Industrial Ultrasonic Cleaner Generator PCB Piezoelectric Ultrasonic Power Generator Pcb Power Adjustable
Category：Company news
The circuit board of an ultrasonic cleaning machine, as one of its core components, carries the important mission of driving the operation of the entire machine. This is not just a simple circuit board, but also a crystallization of technology and wisdom.
In the world of ultrasonic cleaning machines, circuit boards are like a commander, precisely controlling every small operation to ensure stable and efficient operation of the machine. Every subtle current fluctuation is precisely controlled by the circuit board and converted into the strong force of ultrasound, completely removing stains and impurities from the surface of the object.
Type | Frequency | Power | Dimension(mm) | Transducer numbers |
PLS-DLB60 | 25khz,28khz,33khz,40khz | 60W | 132×85×45mm | 1 piece |
PLS-DLB100 | 25khz,28khz,33khz,40khz | 100W | 132×85×45mm | 1-2 pieces |
PLS-DLB120 | 25khz,28khz,33khz,40khz | 120W | 132×85×45mm | 1-2 pieces |
PLS-DLB150 | 25khz,28khz,33khz,40khz | 150W | 132×85×45mm | 1-3 pieces |
PLS-DLB200 | 25khz,28khz,33khz,40khz,80khz,100khz,135khz | 200W | 180×130×60mm | 4 pieces |
PLS-DLB300 | 25khz,28khz,33khz,40khz | 300W | 180×130×60mm | 6 pieces |
PLS-DLB400 | 25khz,28khz,33khz,40khz | 400W | 180×130×60mm | 8 pieces |
PLS-DLB500 | 25khz,28khz,33khz,40khz | 500W | 180×130×60mm | 10 pieces |
PLS-DLB600 | 25khz,28khz,33khz,40khz | 600W | 180×130×60mm | 12 pieces |
Ultrasonic PCB generator could to 2400W,welcome send the enquire | ||||
200W-600W Ultrasonic PCB frequency adjustable,display board is optional | ||||
Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us during your order with detail request | ||||
Power Adjustable Industrial Ultrasonic Cleaner Generator PCB Piezoelectric Ultrasonic Power Generator Pcb Power Adjustable
