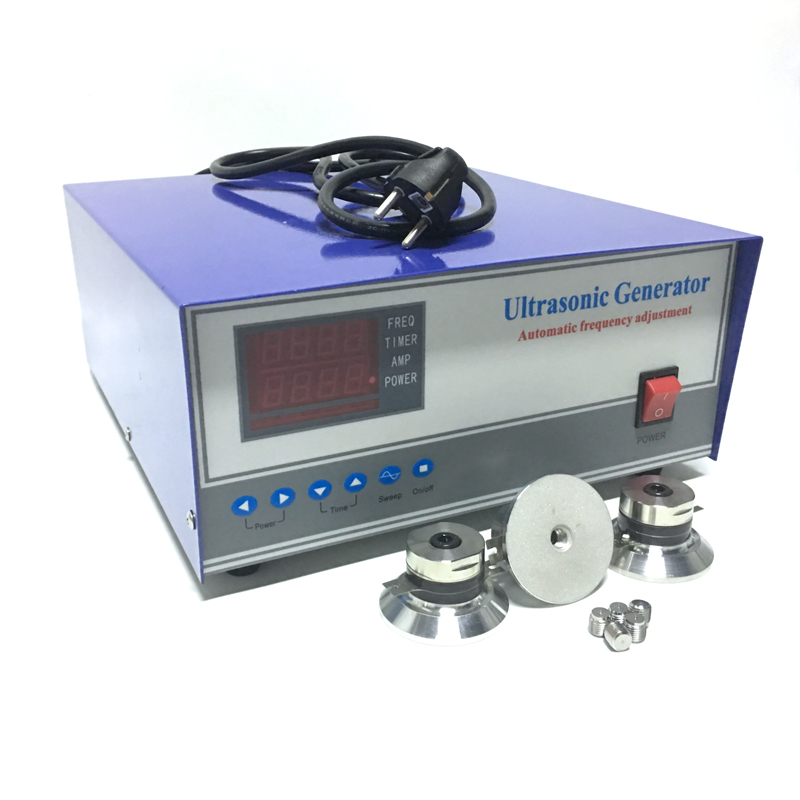

Single Frequency Digital Ultrasonic Generator 1500W Ultrasonic Cleaning Generator For Laboratory Ultrasonic Cleaner Washer

Category:Company news

Single Frequency Digital Ultrasonic Generator 1500W Ultrasonic Cleaning Generator For Laboratory Ultrasonic Cleaner Washer

Single Frequency Digital Ultrasonic Generator 1500W Ultrasonic Cleaning Generator For Laboratory Ultrasonic Cleaner Washer

The working principle of the digital industrial piezoelectric ultrasonic cleaning generator is based on the piezoelectric effect and ultrasonic technology. It generates tiny bubbles through high-frequency vibration, which rapidly expand and rupture in the liquid, producing strong shock waves. These shock waves can penetrate into tiny gaps on the surface of objects, quickly removing dirt and grease attached to them. Compared with traditional cleaning methods, it can not only thoroughly clean the surface of objects, but also significantly improve cleaning efficiency.

The digital industrial piezoelectric ultrasonic cleaning generator also has extremely high flexibility. It can adjust the vibration frequency and power size according to different cleaning needs, thereby achieving precise cleaning of objects of different materials and shapes. This flexibility makes it widely applicable in multiple fields, such as automotive manufacturing, medical devices, aerospace, etc. The digital industrial piezoelectric ultrasonic cleaning generator has brought revolutionary changes to the field of precision industrial cleaning due to its high efficiency, environmental protection, and flexibility. It not only improves cleaning efficiency, but also reduces the risk of environmental pollution, injecting new vitality into the development of modern industry.

Type

Power(W)

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

PLS-QXDY-300

300W

17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

PLS-QXDY-600

600W

17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

PLS-QXDY-900

900W

17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

PLS-QXDY-1000

1000W

17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

PLS-QXDY-1200

1200W

17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

PLS-QXDY-1500

1500W

17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

PLS-QXDY-1800

1800W

17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

PLS-QXDY-2000

2000W

17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

PLS-QXDY-2400

2400W

17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

PLS-QXDY-3000

3000W

17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ

High Frequency

100W-300W

175-200KHZ

Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
