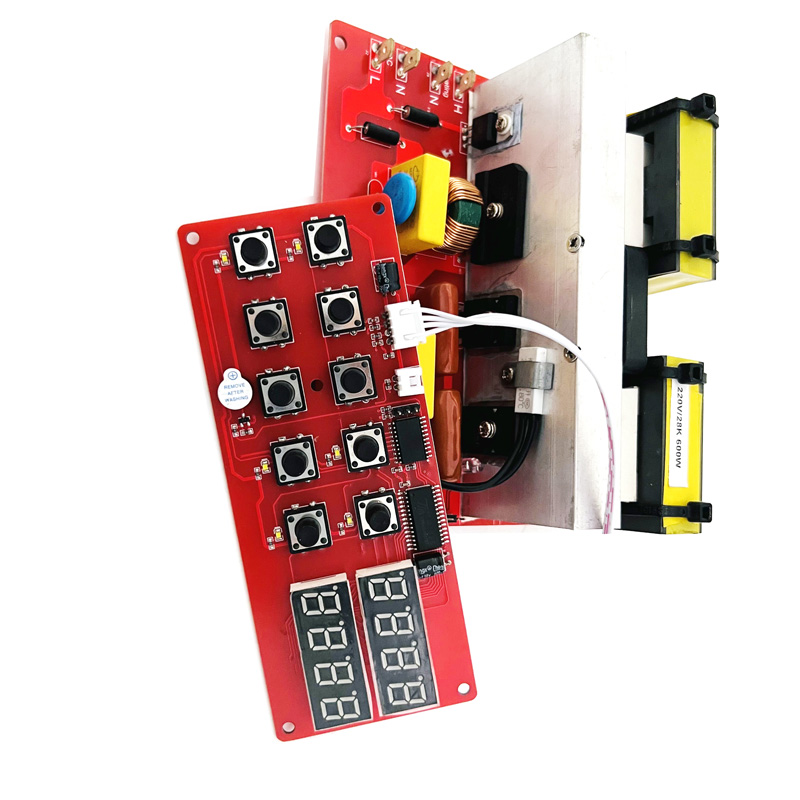

28K-40K Digital Ultrasonic Transducer Driver Board Ultrasonic Generator Ultrasonic Cleaner Circuit Board

Category:Company news

28K-40K Digital Ultrasonic Transducer Driver Board Ultrasonic Generator Ultrasonic Cleaner Circuit Board

28K-40K Digital Ultrasonic Transducer Driver Board Ultrasonic Generator Ultrasonic Cleaner Circuit Board

Ultrasonic cleaning of power supply PCB circuit boards also has the characteristics of intelligence and automation. By combining with computer control systems, remote monitoring and operation can be achieved, greatly improving the convenience and security of the cleaning process. Meanwhile, its efficient and environmentally friendly cleaning method also meets the requirements of modern industry for green and sustainable development. 25KHZ to 40KHZ ultrasonic cleaning power supply PCB circuit boards have become an indispensable and important part of modern industrial cleaning due to their excellent performance, wide application fields, and intelligent and automated characteristics.

Type

Frequency

Power

Dimension(mm)

Transducer numbers

PLS-DLB60

25khz,28khz,33khz,40khz

60W

132×85×45mm

1 piece

PLS-DLB100

25khz,28khz,33khz,40khz

100W

132×85×45mm

1-2 pieces

PLS-DLB120

25khz,28khz,33khz,40khz

120W

132×85×45mm

1-2 pieces

PLS-DLB150

25khz,28khz,33khz,40khz

150W

132×85×45mm

1-3 pieces

PLS-DLB200

25khz,28khz,33khz,40khz,80khz,100khz,135khz

200W

180×130×60mm

4 pieces

PLS-DLB300

25khz,28khz,33khz,40khz

300W

180×130×60mm

6 pieces

PLS-DLB400

25khz,28khz,33khz,40khz

400W

180×130×60mm

8 pieces

PLS-DLB500

25khz,28khz,33khz,40khz

500W

180×130×60mm

10 pieces

PLS-DLB600

25khz,28khz,33khz,40khz

600W

180×130×60mm

12 pieces

Ultrasonic PCB generator could to 2400W,welcome send the enquire

200W-600W Ultrasonic PCB frequency adjustable,display board is optional

Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
