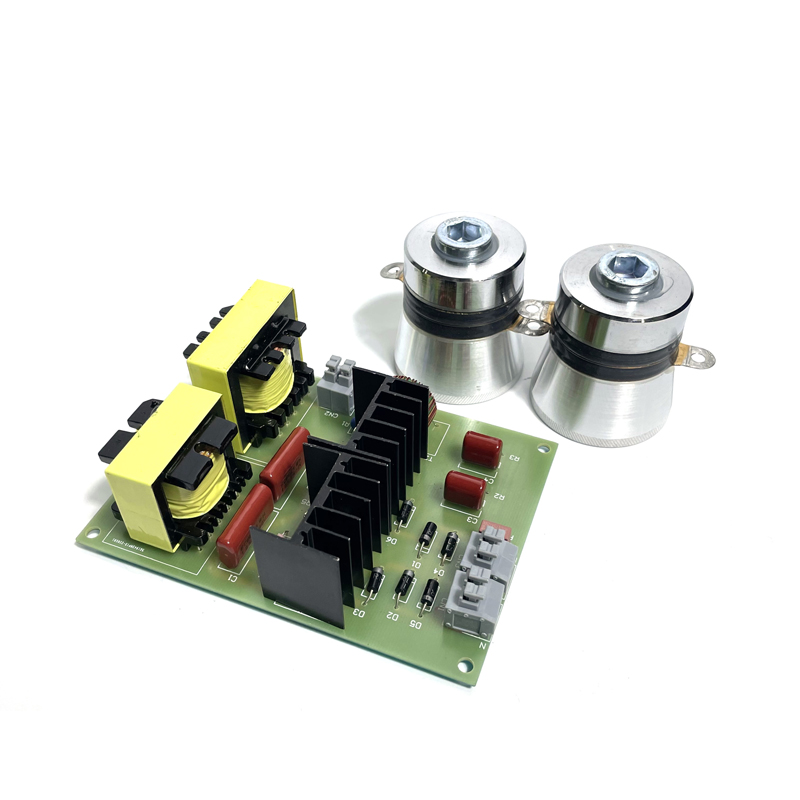

Ultrasonic Circuit Board Cleaner Generator 100W 28KHZ-40KHZ Ultrasonic Power Transducers Driver Circuit PCB Board

Category:Company news

Ultrasonic Circuit Board Cleaner Generator 100W 28KHZ-40KHZ Ultrasonic Power Transducers Driver Circuit PCB Board

Ultrasonic Circuit Board Cleaner Generator 100W 28KHZ-40KHZ Ultrasonic Power Transducers Driver Circuit PCB Board

Characteristics of low-power ultrasonic cleaning generator:

The low-power ultrasonic cleaning generator has the characteristics of small volume, light weight, low power, and high efficiency. Its power is generally below a few hundred watts, suitable for cleaning small components, precision instruments, electronic components and other items. Compared with traditional mechanical and chemical cleaning, low-power ultrasonic cleaning generators have the following advantages:

1. Good cleaning effect: Ultrasonic cleaning can penetrate into small gaps and holes on the surface of objects, quickly remove difficult to clean dirt and impurities, and achieve efficient cleaning effect.

2. Fast cleaning speed: Ultrasonic cleaning can complete the cleaning process in a short time, greatly improving cleaning efficiency.

3. Environmental protection and energy conservation: Ultrasonic cleaning does not require the use of any chemical cleaning agents, avoiding chemical pollution and environmental damage, while achieving significant energy-saving effects.

4. Easy to operate: The low-power ultrasonic cleaning generator is easy to operate, just put the item to be cleaned into the cleaning tank, add an appropriate amount of cleaning solution, and turn on the equipment.

Type

Frequency

Power

Dimension(mm)

Transducer numbers

PLS-DLB60

25khz,28khz,33khz,40khz

60W

132×85×45mm

1 piece

PLS-DLB100

25khz,28khz,33khz,40khz

100W

132×85×45mm

1-2 pieces

PLS-DLB120

25khz,28khz,33khz,40khz

120W

132×85×45mm

1-2 pieces

PLS-DLB150

25khz,28khz,33khz,40khz

150W

132×85×45mm

1-3 pieces

PLS-DLB200

25khz,28khz,33khz,40khz,80khz,100khz,135khz

200W

180×130×60mm

4 pieces

PLS-DLB300

25khz,28khz,33khz,40khz

300W

180×130×60mm

6 pieces

PLS-DLB400

25khz,28khz,33khz,40khz

400W

180×130×60mm

8 pieces

PLS-DLB500

25khz,28khz,33khz,40khz

500W

180×130×60mm

10 pieces

PLS-DLB600

25khz,28khz,33khz,40khz

600W

180×130×60mm

12 pieces

Ultrasonic PCB generator could to 2400W,welcome send the enquire

200W-600W Ultrasonic PCB frequency adjustable,display board is optional

Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us during your order with detail request


Ultrasonic Circuit Board Cleaner Generator 100W 28KHZ-40KHZ Ultrasonic Power Transducers Driver Circuit PCB Board
