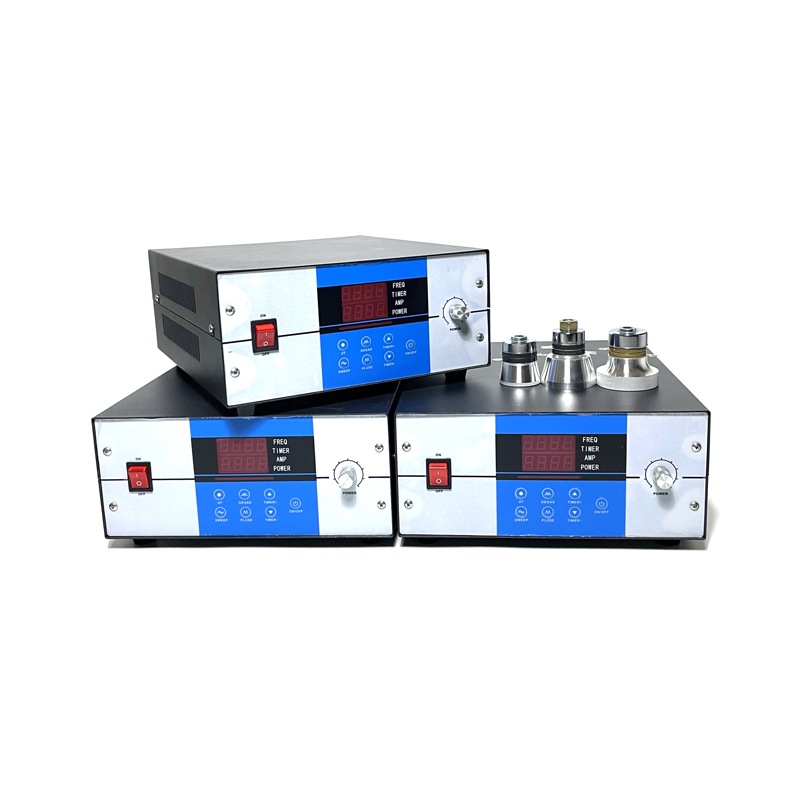

300W 40Khz Digital Ultrasonic Generator Ultrasonic Cleaner Generator For Automatic Ultrasonic Cleaner
Category：Company news
With the development of technology, cleaning technology is also constantly improving. Among them, ultrasonic cleaning technology, as an efficient and environmentally friendly cleaning method, is widely used in various fields. The ultrasonic cleaning power generator is one of the core equipment for achieving ultrasonic cleaning.
The ultrasonic cleaning power generator generates cavitation effect in the cleaning tank through specific frequency ultrasonic vibration, which strongly washes the surface of the cleaned part, thereby achieving the purpose of cleaning. Specifically, the ultrasonic cleaning power generator consists of two parts: an ultrasonic generator and an ultrasonic transducer. The ultrasonic generator generates high-frequency electrical signals, drives the ultrasonic transducer to generate mechanical vibration, and then transmits the mechanical vibration to the cleaning solution, causing the cleaning solution to produce ultrasonic vibration. During the cleaning process, ultrasonic vibration causes small bubbles to form inside the cleaning solution and rapidly rupture, producing a strong impact force that washes the surface of the cleaned part, thereby achieving the cleaning effect.
Type | Power(W) | Frequency (KHz) | Transducer numbers | Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE | ||||
PLS-QXDY-300 | 300W | 17khz,20khz,25khz,28khz,33khz,40khz | 3-6 | 300x360x150 |
PLS-QXDY-600 | 600W | 17khz,20khz,25khz,28khz,33khz,40khz | 6-12 | 300x360x150 |
PLS-QXDY-900 | 900W | 17khz,20khz,25khz,28khz,33khz,40khz | 9-18 | 300x360x150 |
PLS-QXDY-1000 | 1000W | 17khz,20khz,25khz,28khz,33khz,40khz | 10-20 | 300x360x150 |
PLS-QXDY-1200 | 1200W | 17khz,20khz,25khz,28khz,33khz,40khz | 12-24 | 300x360x150 |
PLS-QXDY-1500 | 1500W | 17khz,20khz,25khz,28khz,33khz,40khz | 15-30 | 300x360x150 |
PLS-QXDY-1800 | 1800W | 17khz,20khz,25khz,28khz,33khz,40khz | 18-36 | 300x360x150 |
PLS-QXDY-2000 | 2000W | 17khz,20khz,25khz,28khz,33khz,40khz | 20-40 | 300x360x150 |
PLS-QXDY-2400 | 2400W | 17khz,20khz,25khz,28khz,33khz,40khz | 24-48 | 300x360x150 |
PLS-QXDY-3000 | 3000W | 17khz,20khz,25khz,28khz,33khz,40khz | 50-60 | 300x360x150 |
High Frequency | 300W-1200W | 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ | ||
High Frequency | 100W-300W | 175-200KHZ | ||
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request | ||||
300W 40Khz Digital Ultrasonic Generator Ultrasonic Cleaner Generator For Automatic Ultrasonic Cleaner
