Use an oscilloscope to collect the working signal of the power supply generator of the Ultrasonic welding machine, and collect the current of the transducer driven by the ultrasonic generator when it is unloaded, analyze and demonstrate the performance and feasibility of the entire system, and try it on the wire bonding equipment to verify the bonding results. And the application prospects of digital ultrasonic generators were analyzed. Its advantages or innovations are: realizing digital control of ultrasonic generation and dynamic Frequency compensation; Low cost, strong portability, and large space for subsequent development; Powerful and applicable to various ultrasonic transducers.

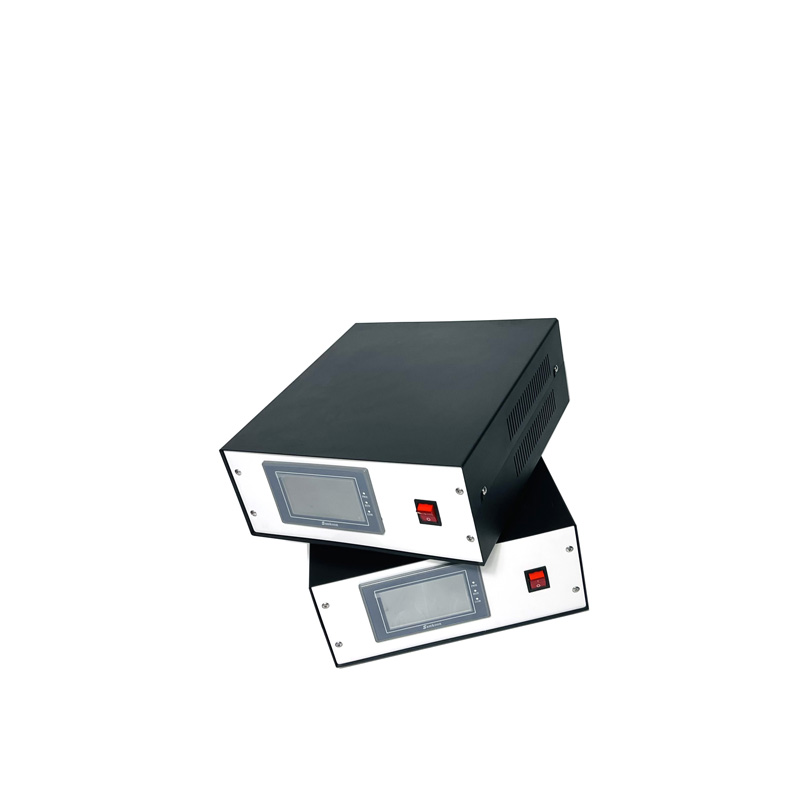

15kHz 2600W Ultrasonic Welding Machine Generator System Ultrasonic Generator Series Ultrasonic Mask Welding Machine
