The ultrasonic generator plays an important role as the driving source of the ultrasonic transducer in the ultrasonic bonding system. In response to the problems of single function of traditional ultrasonic generators and frequency drift during the operation of ultrasonic transducers, the low-cost and efficient performance of ARM9 microprocessor and the programmability of DDS are utilized to achieve various frequency generation and automatic frequency modulation and phase locking functions. Therefore, the generator frequency can be adjusted according to different transducers, making it dynamically in a resonant state, ensuring that the output power is in an efficient state.

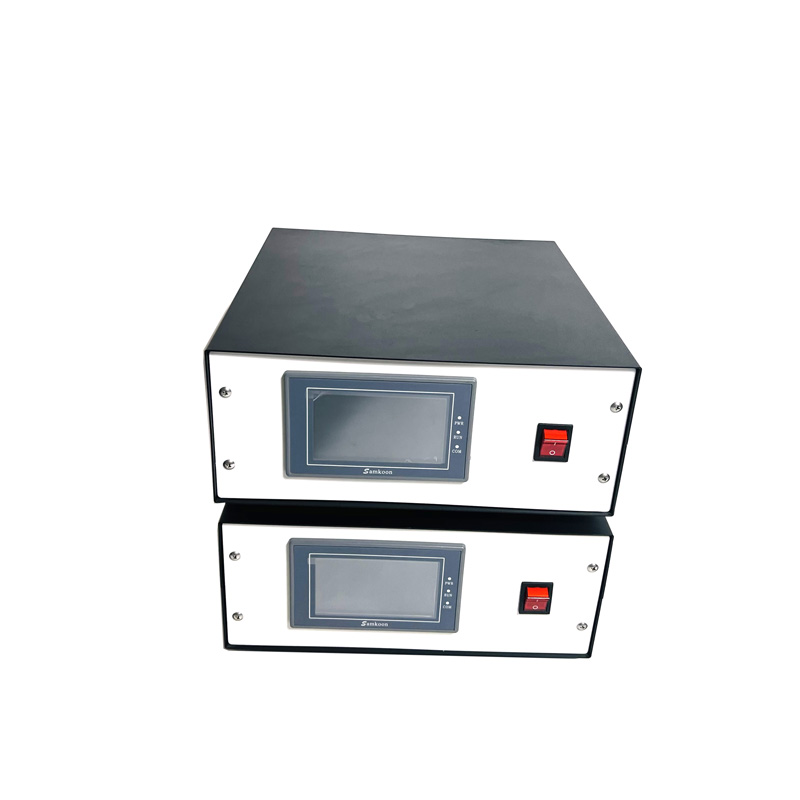

Ultrasonic Welding Generator And 20khz Ultrasonic Welding Transducer With Booster Horn
